Product Code : cnk-238

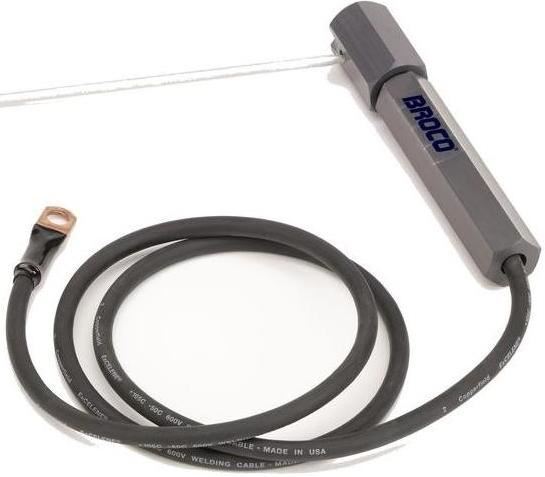

Broco® Underwater BR-21 Welding Stinger

  • Lightweight and durable
  • Reduces diver fatigue
  • The Broco® BR-21 is the new generation compression type welding stinger engineered with superior features.
  • The BR-21 is lightweight, durable and designed to hold the electrode at the optimum angle to reduce diver fatigue.
  • Selected features of the BR-21 include:
    - Index notch on the head helps divers find the hole, even in the dark. Improves rod insertion in low-vis environment,
    - Beveled seat keeps electrode at ideal angle. Groove eliminates electrode "wiggle."
    - Over-sized head is easier to hold.
    - Resistance O-ring on the shoulder ensures tension when head is tightened, increasing head life.
    - Handle and head are from hexagonal stock for sure gripping by a gloved hand.

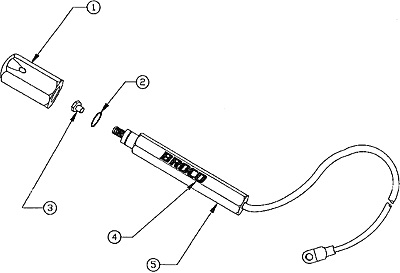

Item Part No. Description
1. 210* Cap Assembly
2. 241 O-Ring, BUNA, Size 116
3. 2105 Screw, Cap, 1/4"-20 x 3/8"
4. BB-11 Label, BROCO, Blue
5. 211* Handle & Cable Assembly
*NOTE: This sub-assembly contains one each PN 2105 Cap Screw.
