Emergency Water Activated Repair Patch (EWARP), NSN : 4730-01-242-6186, PN : SG520
| SG520 |
: 2″ x 5′ (5.08cm x 1.524m) |

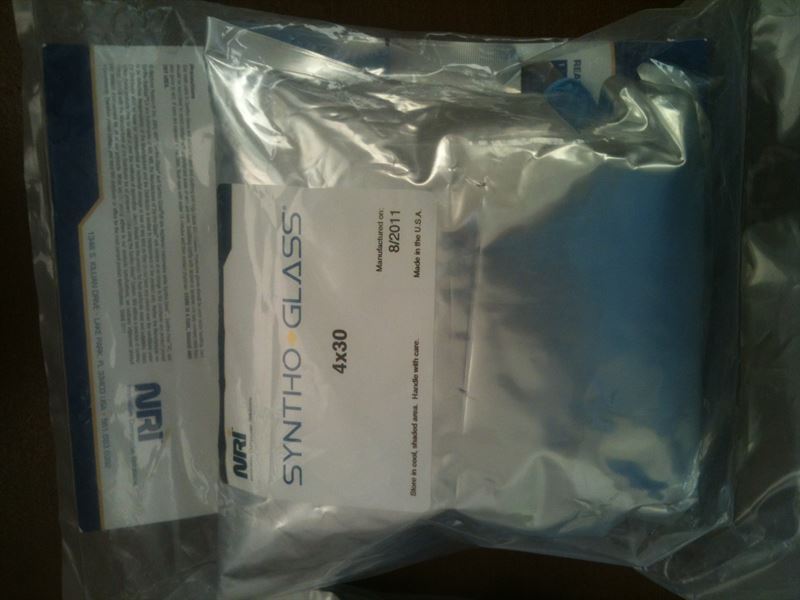

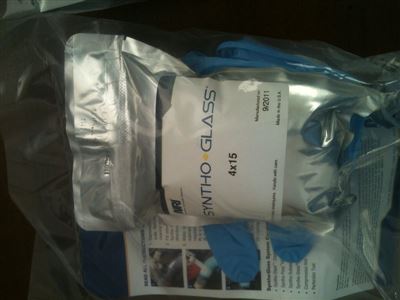

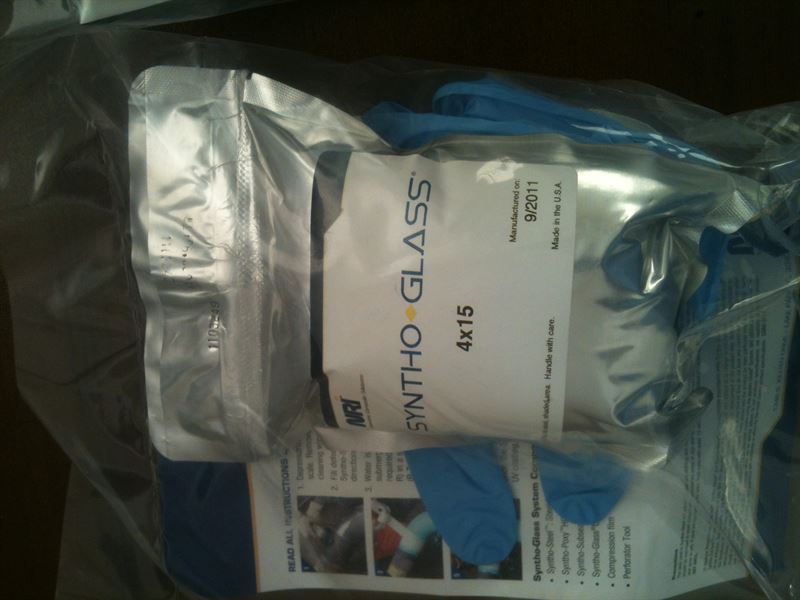

Syntho-Glass® is the originally, patented fiberglass pre-impregnated composite that is activated by salt or freshwater. Packaged in a hermetically sealed foil pouch, it is ready to use and does not require any measuring or mixing. This system, when used with the appropriate primary sealant, enables you to repair and reinforce virtually any diameter pipe in minutes. Syntho-Glass® not only restores a pipe to its original psi rating, but actually can make the repair area stronger than the original pipe, reducing downtime, saving in parts and labor. With an initial setting time of only 30 minutes (75°F/24°C), Syntho-Glass® is excellent on copper, steel, SS, PVC, FRP, clay, concrete, rubber, and more. It is safe to use, nontoxic, noncombustible, and odorless. Syntho-Glass is a versatile solution for industries where quick-action pipe repair can be critical.Description
Typical Applications
- Impact protection

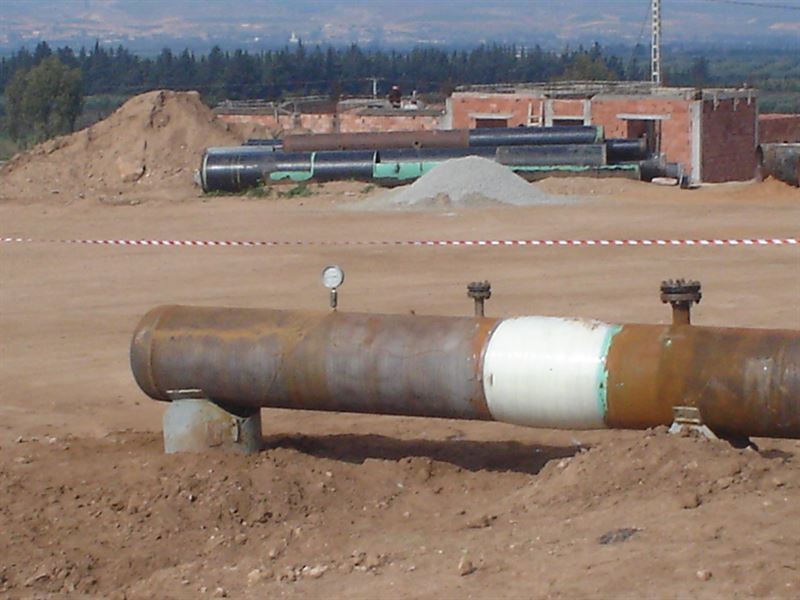

- Emergency repair

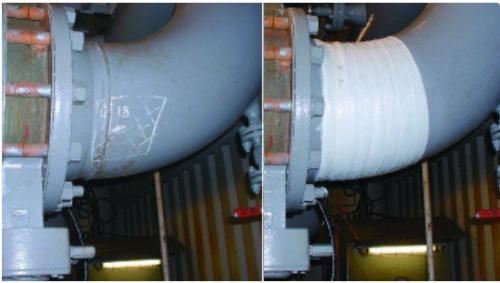

- Corroded pipes
- Irregular pipe fittings
- Force mains and gravity lines
- Joint and tee repair
- Underwater repair and splash zone
Benefits
- Ready to use
- Effective, time-saving
- No mixing and no mess
- Sets rock hard in minutes
Physical Properties
- VOCs: None
- Working Time: 5 Minutes at 75°F (24°C)
- Set Time: 30 Minutes at 75°F (24°C)
- Resin Type: Water-activated polyurethane
- Resin Application: Pre-impregnated
- Service Temperature: -50° to 250°F (-45° to 121°C)
- Application Temperature: 32° to 150°F (0° to 65°C)
- Pressure once cured w/primary sealant: Max 300 psi (20.6 bar)
- Shelf Life: 24 Months with recommended storage
