Ürün Kodu : cnk-392

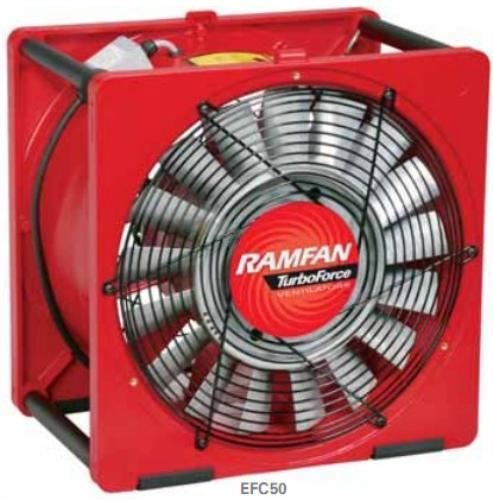

RAMFAN 16”/ 40cm | EFC50x/EFC120x/EFC150x Komple Güvenli Turbo Basıcı

NSN:4140-01-272-6060, PN : EFC50X
  • -370C / 400C arasinda surekli calisir, 850C de motor sıcaklık toruması devreye girerek motoru devreden çıkarır, motor sogudugunda kendiliginden tekrar devreye girer




MODEL EFC50x EFC120x (50Hz) EFC150x
SİPARİŞ ≠ EA7000x, EA7000-230x EA7300x EG8000x, EG8000x-230x
SERBEST BASMA
15FT/4.6MT 1-90º
3,200cfm/5,440m3/sa
1,935cfm/3,289.5m3/sa
3,750cfm/6,375m3/sa
2,700cfm/4,590m3/sa
4,459cfm/7,580.3m3/sa
3,179cfm/5,404.3m3/sa
İMPELLER 21 kanat 17 kanat 7 kanat
AĞIRLIK 49lbs/22kg 51lbs/23kg 55lbs/25kg
EBATLAR (YXGXD) 19”/18”/12”    483/457/305 mm 19”/18”/12”483/457/305mm 19”/18”/12” 483/457/305 mm
SES 90.2dB 86.1dB 90.2dB
MOTOR 0.5Hp/0.37kW 1.2Hp/0.9kW 1.5Hp/1.1kW
ELEKTRİK 115/230VAC, 1ø, 50/60Hz 230VAC, 1ø, 50Hz 115/230VAC, 1ø, 50/60Hz
BAŞLAMA AMPERİ
ÇALIŞMA AMPERİ
115V: 21A    230V: 10A
115V: 6A      230V: 3A
27A
5A
115V: 80A    230V: 40A
115V: 15A    230V: 8A
MOTOR SERTİFİKASI
UL Class I - Group D
UL Class II- Group E,F,G
 ATEX II 2 G Ex d IIB
UL Class I - Group D
UL Class II- Group E,F,G
